ehrapy.plot.kaplan_meier#

ehrapy.plot.kaplan_meier(kmfs, *, display_survival_statistics=False, ci_alpha=None, ci_force_lines=None, ci_show=None, ci_legend=None, at_risk_counts=None, color=None, grid=False, xlim=None, ylim=None, xlabel=None, ylabel=None, width=600, height=400, title=None)[source]#

Plots a pretty figure of the Fitted KaplanMeierFitter model.

See also: KaplanMeierFitter.

Parameters:

  • kmfs (Sequence[KaplanMeierFitter]) – Iterables of fitted KaplanMeierFitter objects.

  • display_survival_statistics (bool, default: False) – Whether to show survival statistics in a table below the plot.

  • ci_alpha (list[float] | None, default: None) – The transparency level of the confidence interval. If more than one kmfs, this should be a list.

  • ci_force_lines (list[bool] | None, default: None) – Force the confidence intervals to be line plots (versus default shaded areas). If more than one kmfs, this should be a list.

  • ci_show (list[bool] | None, default: None) – Show confidence intervals. If more than one kmfs, this should be a list.

  • ci_legend (list[bool] | None, default: None) – If ci_force_lines is True, this is a boolean flag to add the lines’ labels to the legend. If more than one kmfs, this should be a list.

  • at_risk_counts (list[bool] | None, default: None) – Show group sizes at time points. If more than one kmfs, this should be a list.

  • color (list[str | None] | None, default: None) – List of colors for each kmf. If more than one kmfs, this should be a list.

  • grid (bool | None, default: False) – If True, plot grid lines.

  • xlim (tuple[float, float] | None, default: None) – Set the x-axis view limits.

  • ylim (tuple[float, float] | None, default: None) – Set the y-axis view limits.

  • xlabel (str | None, default: None) – The x-axis label text.

  • ylabel (str | None, default: None) – The y-axis label text.

  • width (int | None, default: 600) – Plot width in pixels.

  • height (int | None, default: 400) – Plot height in pixels.

  • title (str | None, default: None) – Set the title of the plot.

Return type:

Layout | Overlay | Curve | None

Examples

>>> import ehrdata as ed
>>> import ehrapy as ep
>>> import numpy as np
>>> edata = ed.dt.mimic_2()
>>> edata[:, ["censor_flg"]].X = np.where(
...     edata[:, ["censor_flg"]].X == 0, 1, 0
... )  # MIMIC-II uses 0=death while KaplanMeierFitter expects True=death
>>> kmf = ep.tl.kaplan_meier(edata, "mort_day_censored", "censor_flg")

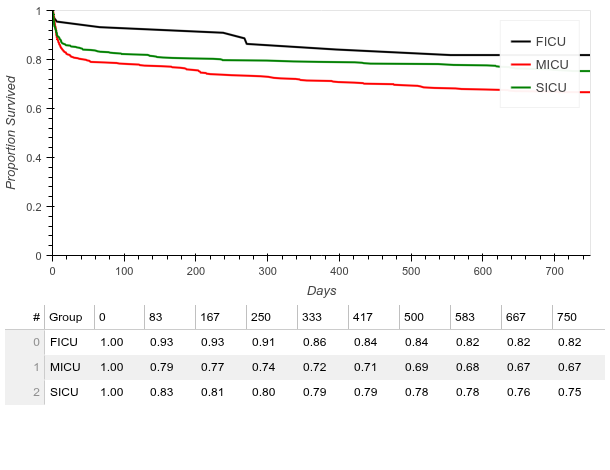

>>> ep.pl.kaplan_meier(
...     [kmf], color=["r"], xlim=(0, 700), ylim=(0, 1), xlabel="Days", ylabel="Proportion Survived", show=True
... )
../../_images/kaplan_meier.png
